sTread Lite Treadmill FAQ

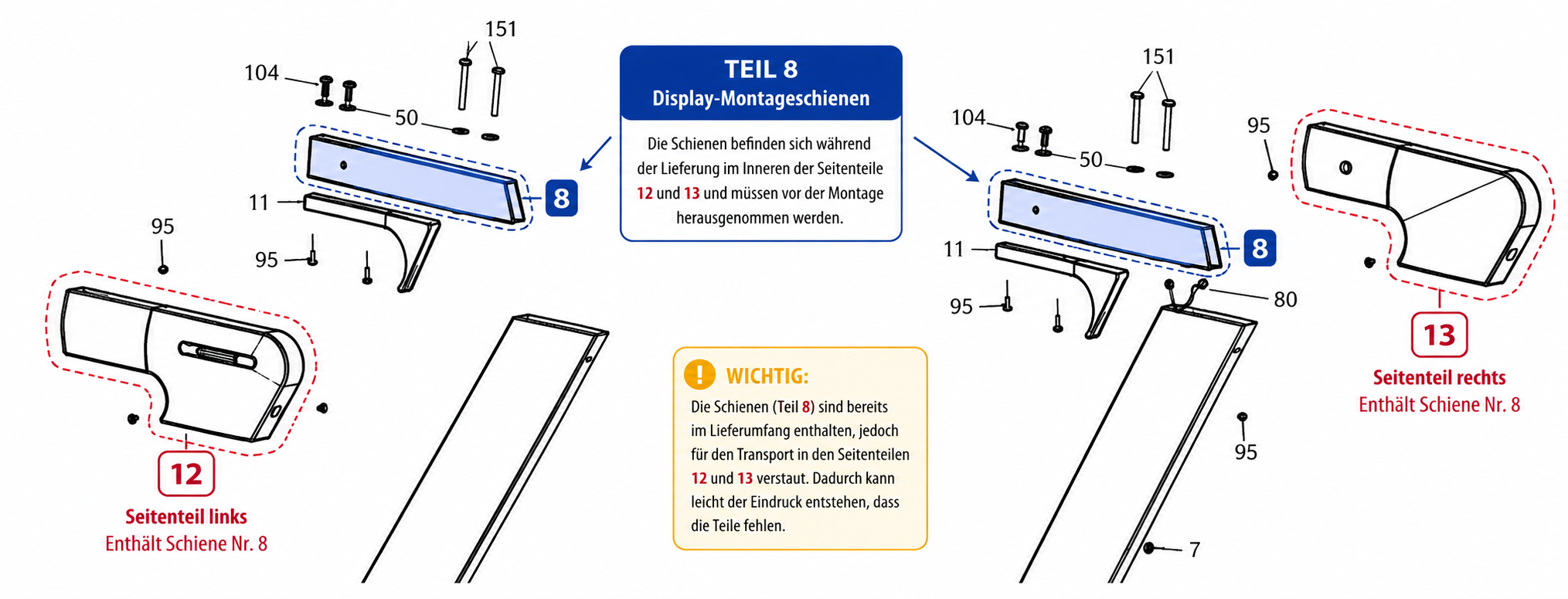

The two mounting rails with part number 8 are included in the delivery, but are stored inside side panels 12 and 13 for transport. This can easily give the impression that the parts are missing.

Important: During delivery, the rails are inside side panels 12 and 13 and must be removed before assembly.

🔍 Please check the side panels carefully before assuming any parts are missing or disposing of the packaging material.

Assembly note
This step is not shown clearly enough in the current assembly video and instructions. We are already working on improving the presentation so that the hidden assembly parts can be found more quickly.

📌 Overview according to the exploded view:

The distance from the top of the running surface to the floor is 22 cm (without incline).

The sTread Lite treadmill is compatible with our Sportstech Live app. On iOS devices, the sTread Lite can also be paired with the Zwift app. In addition, the sTread Lite is compatible with Kinomap via FTMS.

Hold your hand over the treadmill's control panel and swipe from right to left directly in front of it. This will turn the lighting on or off. This simple, touch-free gesture lets you control the lighting with ease.

The running surface measures 130 x 50 cm.

Please note that treadmills should ideally be used with trainers that have smooth, flat soles. Trail running shoes or shoes with studs or coarse soles can cause excessive wear, which may damage the equipment.

Exact power consumption depends on usage, but is typical for a treadmill in this class.

No, the treadmill is designed for indoor use.

The floor protection mat should measure at least 140 x 90 cm.

The maximum user weight is 150 kg.

Yes, the sTread Lite treadmill has an automatic incline function with 15 levels.

Yes. The chest strap connects via Bluetooth; the Sportstech chest strap can be connected to the sTread Lite. We cannot confirm compatibility for chest straps from other manufacturers.

No, the sTread Lite has no hand pulse sensors (hand pulse measurement: no).

Refurbished devices are a cost-effective option for high-quality products, offered at a reduced price. These used products have either been tested by prospective buyers or displayed in stores. Refurbished products have minor signs of use, but have been carefully inspected and reconditioned.

⚠️ Error SAFE – Safety Key

Description:
The safety key is not in place, or the magnet is too weak. Your treadmill will not start unless the key is correctly in place.

Solution:
Check that the safety key is correctly inserted in its designated slot.
Check the magnetic force – if the magnet is weak, you can try using another magnet.
If this does not help, you will need a replacement safety key.

👉 Replacing it is easy to do at home – without voiding the warranty and much more convenient than returning the treadmill. If this does not resolve the issue, we will be happy to collect your device under warranty. Don't worry: if anything goes wrong during replacement and the device is damaged as a result, we will of course take responsibility – provided that you have handled the device carefully and respectfully.

Applies to: all models with a safety key

⚠️ Error 1 – Cable Connection

Description:
The cable connection between the display, console, or PCB in the motor area may be loose, disconnected, or faulty.

Solution:
Disconnect the device from the power supply.
Open the motor cover.
Check all plug connections: are they secure, and are any cables broken?
Reassemble the device and test it.

👉 If the problem persists, a replacement circuit board is probably needed.
➡️ Replacing it is easy to do at home – without voiding the warranty and much more convenient than returning the treadmill. If this does not resolve the issue, we will be happy to collect your device under warranty. Don't worry: if anything goes wrong during replacement and the device is damaged as a result, we will of course take responsibility – provided that you have handled the device carefully and respectfully.

⚠️ Error 2 – Motor or Control Board

Description:
The motor or control board needs to be replaced.

Solution:
👉 Order a motor or control board directly via the chatbot.

➡️ Replacing it is easy to do at home – without voiding the warranty and much more convenient than returning the treadmill. If this does not resolve the issue, we will be happy to collect your device under warranty. Don't worry: if anything goes wrong during replacement and the device is damaged as a result, we will of course take responsibility – provided that you have handled the device carefully and respectfully.

⚠️ Error 3 – Speed Sensor

Description:
The speed sensor is faulty or incorrectly positioned.

Solution:
Check the position of the sensor next to the motor.
If necessary, move the sensor slightly (distance from the magnet).
If this does not work → replace the motor or speed sensor.

👉 You can order replacement parts directly via the chatbot.
➡️ Replacing it is easy to do at home – without voiding the warranty and much more convenient than returning the treadmill. If this does not resolve the issue, we will be happy to collect your device under warranty. Don't worry: if anything goes wrong during replacement and the device is damaged as a result, we will of course take responsibility – provided that you have handled the device carefully and respectfully.

⚠️ Error 4 – Voltage Problem

Description:
The device is not receiving enough power, or the control board is faulty.

Solution:
Disconnect the device from the power supply and wait a few minutes.
Open the motor cover and check the plug connections.
Connect directly to a wall socket (do not use an extension cord).
As a test, switch off other high-power devices.
If the problem persists → replace the control board.

👉 You can order replacement parts directly via the chatbot.
➡️ Replacing it is easy to do at home – without voiding the warranty and much more convenient than returning the treadmill. If this does not resolve the issue, we will be happy to collect your device under warranty. Don't worry: if anything goes wrong during replacement and the device is damaged as a result, we will of course take responsibility – provided that you have handled the device carefully and respectfully.

⚠️ Error 5 – Control Board / Motor

Description:
In most cases, the control board needs to be replaced. If this does not help, the motor is faulty.

Solution:
👉 Order replacement parts directly via the chatbot.

➡️ Replacing it is easy to do at home – without voiding the warranty and much more convenient than returning the treadmill. If this does not resolve the issue, we will be happy to collect your device under warranty. Don't worry: if anything goes wrong during replacement and the device is damaged as a result, we will of course take responsibility – provided that you have handled the device carefully and respectfully.

⚠️ Error 7 – Motor Overvoltage

Description:
This is often caused by the running belt being too tight.

Solution:
Loosen the running belt (as described in the manual).
If necessary, tighten it slightly, but less than before.
If the problem persists → replace the motor.

👉 You can order replacement parts directly via the chatbot.
➡️ Replacing it is easy to do at home – without voiding the warranty and much more convenient than returning the treadmill. If this does not resolve the issue, we will be happy to collect your device under warranty. Don't worry: if anything goes wrong during replacement and the device is damaged as a result, we will of course take responsibility – provided that you have handled the device carefully and respectfully.

⚠️ Error 8 – Faulty Drive Motor

Description:
The drive motor is probably faulty.

Solution:
👉 Order a replacement motor directly via the chatbot.

➡️ Replacing it is easy to do at home – without voiding the warranty and much more convenient than returning the treadmill. If this does not resolve the issue, we will be happy to collect your device under warranty. Don't worry: if anything goes wrong during replacement and the device is damaged as a result, we will of course take responsibility – provided that you have handled the device carefully and respectfully.

⚠️ Error 10 – Incline Motor

Description:
The incline motor needs to be replaced.

Solution:
👉 Order the replacement part directly via the chatbot.

➡️ Replacing it is easy to do at home – without voiding the warranty and much more convenient than returning the treadmill. If this does not resolve the issue, we will be happy to collect your device under warranty. Don't worry: if anything goes wrong during replacement and the device is damaged as a result, we will of course take responsibility – provided that you have handled the device carefully and respectfully.

⚠️ Error 11 – Incline Motor

Description:
The incline motor also needs to be replaced in this case.

Solution:
👉 Order the replacement part directly via the chatbot.

➡️ Replacing it is easy to do at home – without voiding the warranty and much more convenient than returning the treadmill. If this does not resolve the issue, we will be happy to collect your device under warranty. Don't worry: if anything goes wrong during replacement and the device is damaged as a result, we will of course take responsibility – provided that you have handled the device carefully and respectfully.
